This one will be quick – I promise…

A common requirement encountered when demonstrating and/or implementing OOB WSS/MOSS calendars is to disable and/or hide one or more of those ‘special’ fields that make up the ‘Event’ content type.

I call these ‘special’ fields as they can’t be modified through the Web UI and are tied to some special functionality when used in conjunction with the calendar list.

The solution proposed *should* be possible to implement through the Web UI as long as you have permissions to modify pages and you have either:

Referenced a JQuery Library in your master page
Have a copy of the JQuery library somewhere in your _Layouts directory you can reference
Domain Policies and/or Corporate Firewalls will allow you to reference an externally hosted JQuery library

This solution has been developed under the assumption of the later. If none of these options are possible, I suppose the solution could be re-worked utilizing standard Javascript to achieve the same result.

Lets jump in…

Assuming the calendar you want to modify already exists, open the corresponding NewForm.aspx appending ‘?toolpanview=2’ to ht URL:

This will allow you to edit the form without detaching it from the list definition.

Add a Content Editor Web Part and position it below the form itself. Edit the source and provide the following:

<script src="http://ajax.microsoft.com/ajax/jquery/jquery-1.4.2.min.js" type="text/javascript"></script>

<script type="text/javascript">

//Hide the ‘All Day Event’ Field:

//$("TABLE.ms-formtable>TBODY>TR:eq(5)").css('display', 'none');

//Hide the ‘Recurrence’ Field:

//$("TABLE.ms-formtable>TBODY>TR:eq(6)").css('display', 'none');

//Hide the ‘Workspace’ Field

$("TABLE.ms-formtable>TBODY>TR:eq(7)").css('display', 'none');

</script>

Couple of things to note here:

The first line is the reference to the external JQuery library as previously discussed. If you host a copy internally, change this to point to that. If your master page already references a JQuery library, omit it all together.

I have provided three lines of code in the secondary script block. (Two of which are commented out) These are explained inline above. Note that the JQuery hides rows of the form table based on index (defined by the final ‘:eq(n)’ JQuery selector clause). The indexes used above will hide the correct rows for an OOB ‘Event’ content type, but should be modified where this form has been modified through the addition of fields to the List or underlying content type.

Simply repeat the same step for the ‘EditForm.aspx’ Form and Bob’s your Mother or* Father’s Brother.

*replace with ‘and’ if your family is into that sort of stuff

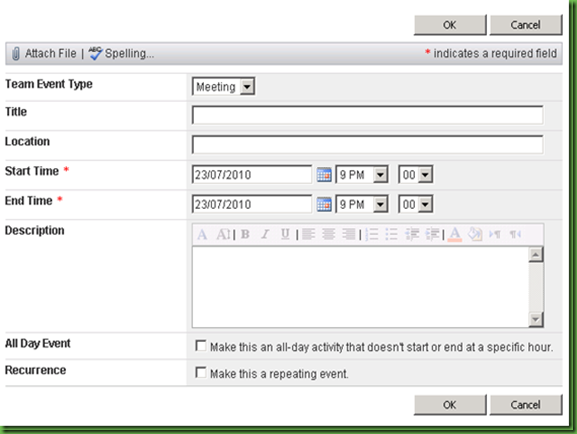

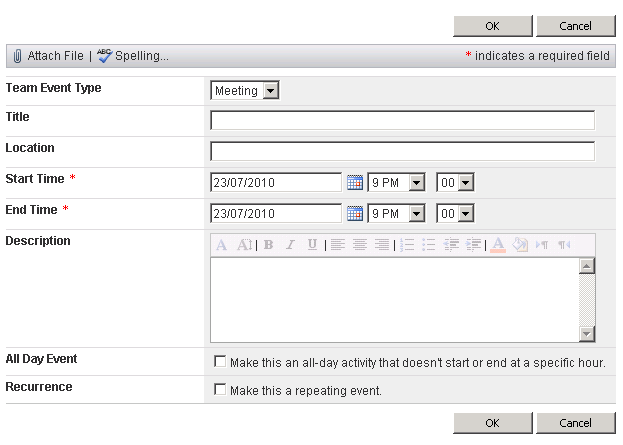

The end result (for the code above with the hiding of the first two special fields being commented out) should look like:

Careful:

Note that while hiding the ‘All Day Event’ and ‘Recurrence’ fields through the Web UI will stop users from using this functionality when creating items using their browser, They options are still available to those users who have connected the calendar to their Outlook Client!

For my next post, I’ll demonstrate a couple of really easy mods (all performable through the web UI with as little as ‘Manage Web Site’ and ‘Manage List’ permission levels) that can be made to an OOB SharePoint Calendar to meet a couple of common business requirements. I’m pretty sure I’m not the first to blog about such a solution, and believe somewhere in the past, briefly skimmed over the solution in other blogs out there.

In three easy steps, you will be able to convert an existing SharePoint Calendar to a fancy pants Color Coded SharePoint Calendar utilizing a custom content type extending from the OOB ‘Event’ Content Type.

Note you should have some basic understanding of SharePoint administration / development using the Web UI (specifically list and content type management). The solution involves a little bit of custom HTML and Javascript / JQuery but these bits can be copied character for character if you follow all the recommendations.

The Three Steps

Create / Deploy Gradient Images.
Extend the 'Event’ Content Type to include a new field ‘Event Category’
Create a view that displays the calendar with color coded entries (based on the value supplied for the ‘Event Category’ field)

Easy… so let’s start at the top…

1. Gradient Images

I’ve included the gradient images I’ve used to get to the end result below. Couple of things worth noting about these:

They must be placed in a library or location accessible to all users with read access to the calendar (The style/code in the final step assumes the images are located in the root folder of the site collection publishing images library)
The last part of the filename must match the category name (ie: if you were to introduce a category called ‘Blogging’ you would need to have an image called ‘alldaydefault_Blogging.gif’ … No change is required if you’re happy with my four categories)
Minimum size of the image should be 1x32 pixels. It can however be larger.

Category	Image	Filename
Leave		alldaydefault_leave.gif
Meeting		alldaydefault_meeting.gif
Training		alldaydefault_training.gif
Travel		alldaydefault_travel.gif

2. Extending the Event Content Type

The second step involves extending the Event Content Type. This can be done so a number of ways including:

The Creation and deployment of a Content type definition inheriting from the ‘Event’ content type (0x0102)
Programmatic creation using the WSS .Net API
Through the Web UI.

As per the introduction, I’m demonstrating a mod that can be performed through the Web UI with no server side deploys or changes (thus avoiding any lengthy Change or Release Procedures usually imposed by your friendly IT department where a server side change is involved).

Creating an extension to an existing content type is usually a straight forward process, that is, where the content type you want to inherit from is available to be extended.

For a number of reasons (I suspect it has something to do with the ‘All Day Event’, ‘Recurrance’ and ‘Use a Workspace…’ items), Microsoft have placed the ‘Event’ content type into the ‘_Hidden’ Content Type group. To state the obvious, this means it is not visible in the ‘Site Collection Content Type’ Management interface, nor is it available to extend from when creating new items.

In my travels, I’ve come across a number of blogs demonstrating ways to overcome this including the manipulation of OOB Features. (eek).

There’s a much easier way:

Create a Calendar
Go to List Settings for said calendar
Go to Advance Settings
Allow the Management of Content Types
Access the ‘Event’ Content Type associated with the calendar
Click through to the parent ‘Event’ content type
Click ‘Name, Description and Group’
Under the ‘Group’ heading, select the ‘New Group:’ option and enter a name

Once these steps have been completed, the OOB ‘Event’ content type will be available to extend from allowing us to create a our new color coding compatible event content type.

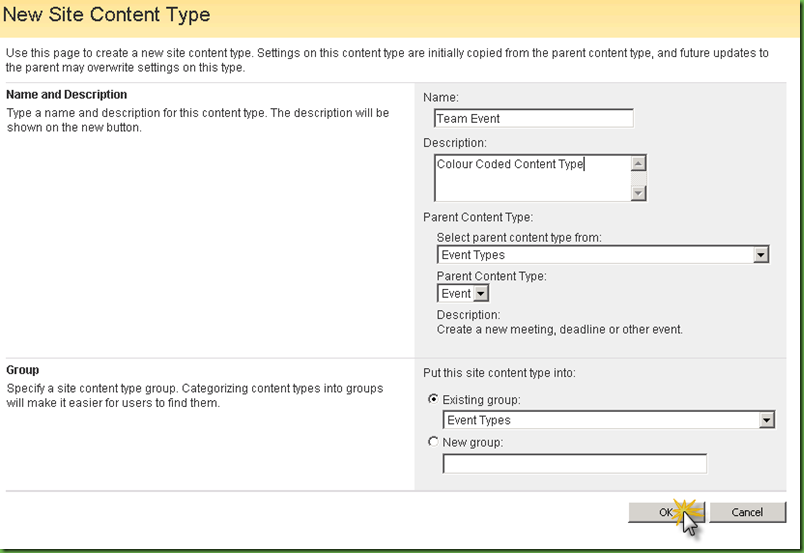

So as you would do normally, create a new content type, choosing ‘Event’ as the base content type adding one extra field of type ‘Choice’ and enter a set of values. For the purpose of this demonstration, I’ve called my content type ‘Team Event’, the category column ‘Team Event Type’ and used four options for the available values of the new choice field:

Travel
Leave
Training
Meeting

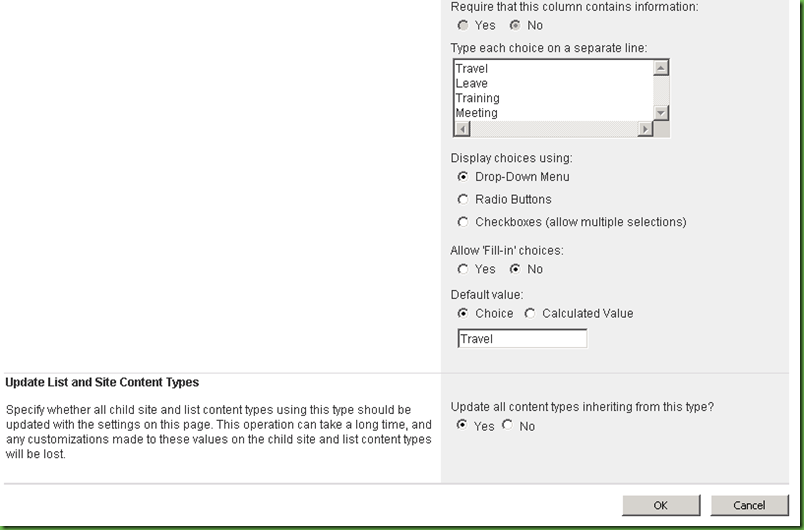

Next, simply add a new site column of type choice and enter a set of values:

For the purpose of this demonstration, I’ve called my content type ‘Team Event’, the category column ‘Team Event Type’ and used four options for the available values of the new choice field:

Travel
Leave
Training
Meeting

You can of course, call your content type and category field anything you like. The values you provide are also only limited by your imagination, however – don’t create too many. The reason behind this will be revealed soon.

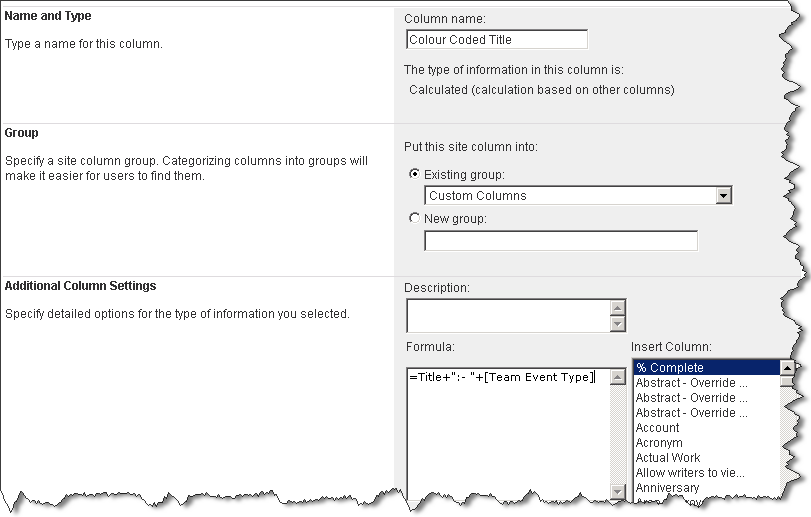

The last step in extending the content type involves creating a calculated column including the Item Title, a delimiter and the category field. Using the field name I have above, it should look something like this:

The final content type definition looks something like:

3. Creating the Color Coded View

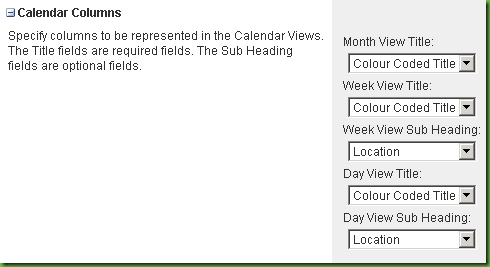

To create the Color Coded view, you can either modify the default view or create a new one. I’ve chosen the later creating a new view and making it the default view. When Creating the view, be sure to select the Calculated Column (‘Colour Coded Title’ in the above screenshot) as the ‘Title’ Field for the Month, Week and Day Views:

Now, Navigate to the view you have just created and add a content editor web part and place it below the calendar view web part.

Add the Code below to the web part

<script src="http://ajax.microsoft.com/ajax/jquery/jquery-1.4.2.min.js" type="text/javascript"></script>

<div style="display:none;">

<table id="keyTable" cellspacing="4" cellpadding="0">

<tr>

Meeting

</td>

Training

</td>

Travel

</td>

Leave

</td>

</tr>

</table>

</div>

<Style type="text/css">

.calenderItem_Leave

{

background-color:#ffd1d1;

background-image:url(/publishingimages/alldaydefault_Leave.gif);

background-repeat:repeat-x;

}

.calenderItem_Training

{

background-color:#dfecda;

background-image:url(/publishingimages/alldaydefault_Training.gif);

background-repeat:repeat-x;

}

.calenderItem_Travel

{

background-color:#fefadc;

background-image:url(/publishingimages/alldaydefault_Travel.gif);

background-repeat:repeat-x;

}

.calenderItem_Meeting

{

background-color:#eef3fa;

background-image:url(/publishingimages/alldaydefault_Meeting.gif);

background-repeat:repeat-x;

}

</Style>

<script type="text/javascript">

//inserts the key above in the table header

$('#CalViewTable1 > TBODY > TR:eq(1) > TD.ms-calheader TR > TD:eq(1)').html($('#keyTable').parent().html());

//get the items on the month view:

$('#CalViewTable1 TD.ms-cal-defaultbgcolor > DIV, #CalViewTable1 TD.^ms-cal- > A:not(.ms-cal-more)').each(

function() {

$(this).parent().removeAttr('onmouseover').removeAttr('onmouseout');

$(this).parent().addClass('calenderItem_' + $(this).text().split(':- ')[1].replace(' ', ''));

$(this).html($(this).html().split(':- ')[0]);

});

//get the items on week and day views:

$('#CalViewTable1 TABLE.ms-cal-tweekitem, #CalViewTable1 TABLE.ms-cal-tdayitem').each(

function() {

$(this).addClass('calenderItem_' + $(this).find('A B').text().split(':- ')[1].replace(' ', ''));

$(this).find('A B').html($(this).find('A B').html().split(':- ')[0]);

});

//sets all single items that do not occur all day to width of 100% (nicer looking interface)

$('#CalViewTable1 TD.^ms-cal- > TABLE').each(function() { $(this).css('width', '100%'); });

</script>

If anyone can help me with the best way in getting html/JavaScript/code onto blogger, please advise – I’m new to this and I’m sure there’s better ways to do so then what I've done to date.

I’m not going to go to any great lengths in explaining what the above code does apart from the facts it searches for the relevant DOM elements and:

Removes the MouseOver and MouseOut Attributes
Adds Style via a Class to the required HTML Elements (defined in the code above)
Formats the Title (removes the category and delimiter)

The JQuery selector clauses look complex, but they are not impossible to walk through if you understand the API

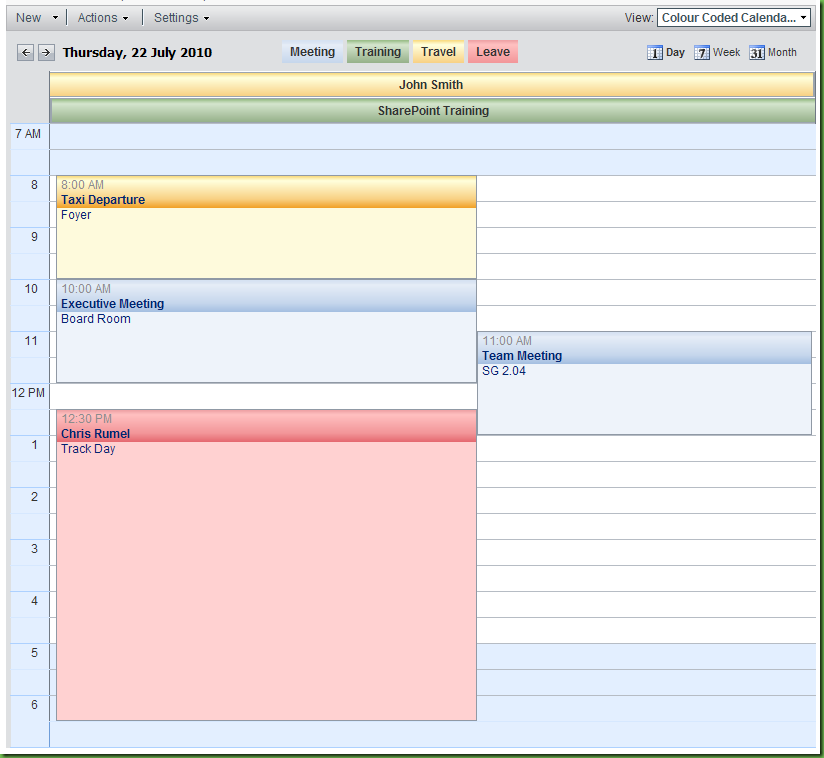

The end result should (after adding a few items to the calendar) should look something like the screen shots below. Note the integrated key in the table of the header. Earlier I mentioned the number and name of the categories used were up to you and your requirements. If you use different category names you’ll need to modify the HTML and inline style in the code above to suit. If you use more than four or five categories, you might need to look at a different format for the key (two rows in the table?).
